Sliding Windows Series

Aluminum sliding windows engineered for smooth operation, energy efficiency, and panoramic views. Five specialized models covering every project need.

About Our Sliding Windows

HAOYU sliding windows are designed for spaces where smooth operation, energy efficiency, and wide views matter. Every model features premium rollers, slim profiles for maximum glass area, and multi-point locking for security.

Choose from five specialized series below — each engineered for different climates, performance levels, and project budgets. All models are factory-direct priced and custom-sized to your opening dimensions.

Browse Our Models

Click "View Details" on any model for full specifications, photos, and quotation.

110 Series Thermal Break Sliding Window
PREMIUM

110 Series Thermal Break Sliding Window

中文：110 系列断桥推拉窗

  • Thermal break aluminum profile with stainless steel silent bottom track
  • Double glazed tempered glass for sound insulation
  • Auto-push-lock hardware for effortless open/close
  • Steel-zinc alloy woven high-transparency screen mesh
  • High/low track design for fast water drainage
137 Series Panoramic Sliding Window
HEAVY-DUTY

137 Series Panoramic Sliding Window

中文：137 系列观景推拉窗

  • Oversized panels for maximum viewing area
  • Large glass-to-frame ratio, panoramic unobstructed views
  • Reinforced frame structure for heavy-duty spans
  • 6 double-row tracks at bottom + double-row wheels for max stability
  • Built-in interior viewing handrail ledge
116 Series Lift-and-Slide Sliding Window
HEAVY-DUTY

116 Series Lift-and-Slide Sliding Window

中文：116 系列提升推拉窗

  • True lift-and-slide mechanism, single-handle operation
  • Lifts and slides heavy panels with minimal effort
  • BOGO airtight locking hardware - lock at any position, freely control opening area
  • Superior wind and water resistance
  • Ideal for very large and heavy panels; optional motorized roller screen available
158 Series Concealed-Track Sliding Window
MODERN

158 Series Concealed-Track Sliding Window

中文：158 系列悬浮推拉窗（隐藏下轨）

  • Concealed bottom track - no visible rail, with built-in handrail ledge (great for coffee cups)
  • Floating sash design, smooth and silent operation
  • Heavy-duty rollers for stable movement
  • Sash embedded inside outer frame for better sealing
  • Bottom high/low track with drainage holes - fast drainage, clean look
115 Series Non-Thermal-Break Sliding Window
STANDARD

115 Series Non-Thermal-Break Sliding Window

中文：115 系列非断桥推拉窗

  • Cost-effective non-thermal-break design for warm climates
  • Standard double-glazed configuration
  • Smooth sliding operation
  • Steel-zinc alloy woven high-transparency screen mesh
  • Best price-performance ratio for budget projects

Need Help Selecting the Right Model?

Tell us your opening dimensions, climate, and budget — we'll recommend the optimal model within 24 hours.

Get Free Quote Chat on WhatsApp

110 Series Thermal Break Sliding Window

PREMIUM

中文：110 系列断桥推拉窗

Energy-efficient thermal break sliding window for residential and light commercial projects.

The 110 Series is our most popular thermal break sliding window, engineered for energy efficiency in both hot and cold climates.

Key Features

  • Thermal break aluminum profile with stainless steel silent bottom track
  • Double glazed tempered glass for sound insulation
  • Auto-push-lock hardware for effortless open/close
  • Steel-zinc alloy woven high-transparency screen mesh
  • High/low track design for fast water drainage

Specifications

Profile Series110 mm thermal break aluminum
Frame MaterialAluminum Alloy 6063-T5
Glass Configuration5+12A+5 double glazed tempered glass
Color OptionsStandard: Grey / Coffee Brown. Custom: Any RAL & Wood-grain (+fee)
HardwareChinese top brand hardware / customer-specified brand available
OriginMade in China
Get Free Quote Chat on WhatsApp

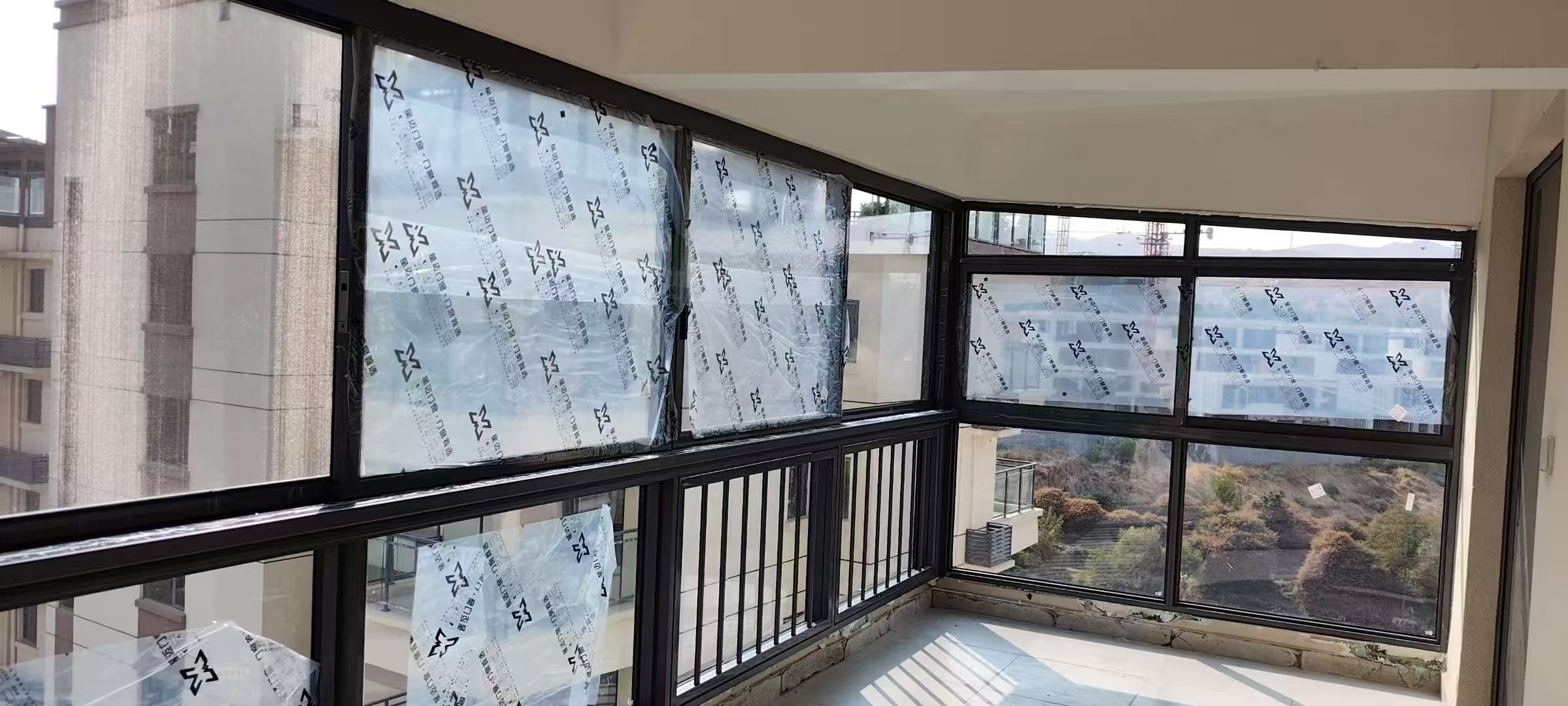

137 Series Panoramic Sliding Window

HEAVY-DUTY

中文：137 系列观景推拉窗

Large-panel panoramic sliding window delivering maximum glass area and wide open views.

The 137 Series is designed for projects that demand wide, uninterrupted views. Oversized sashes and a slim structural frame combine to deliver a 85%+ glass-to-frame ratio.

Key Features

  • Oversized panels for maximum viewing area
  • Large glass-to-frame ratio, panoramic unobstructed views
  • Reinforced frame structure for heavy-duty spans
  • 6 double-row tracks at bottom + double-row wheels for max stability
  • Built-in interior viewing handrail ledge

Specifications

Profile Series137 mm panoramic aluminum
Frame MaterialAluminum Alloy 6063-T5
Glass Configuration5+15A+5 / 6+12A+6 double glazed tempered glass
Color OptionsStandard: Grey . Custom: Any RAL & Wood-grain (+fee)
HardwareChinese top brand heavy-duty hardware / customer brand available
OriginMade in China
Get Free Quote Chat on WhatsApp

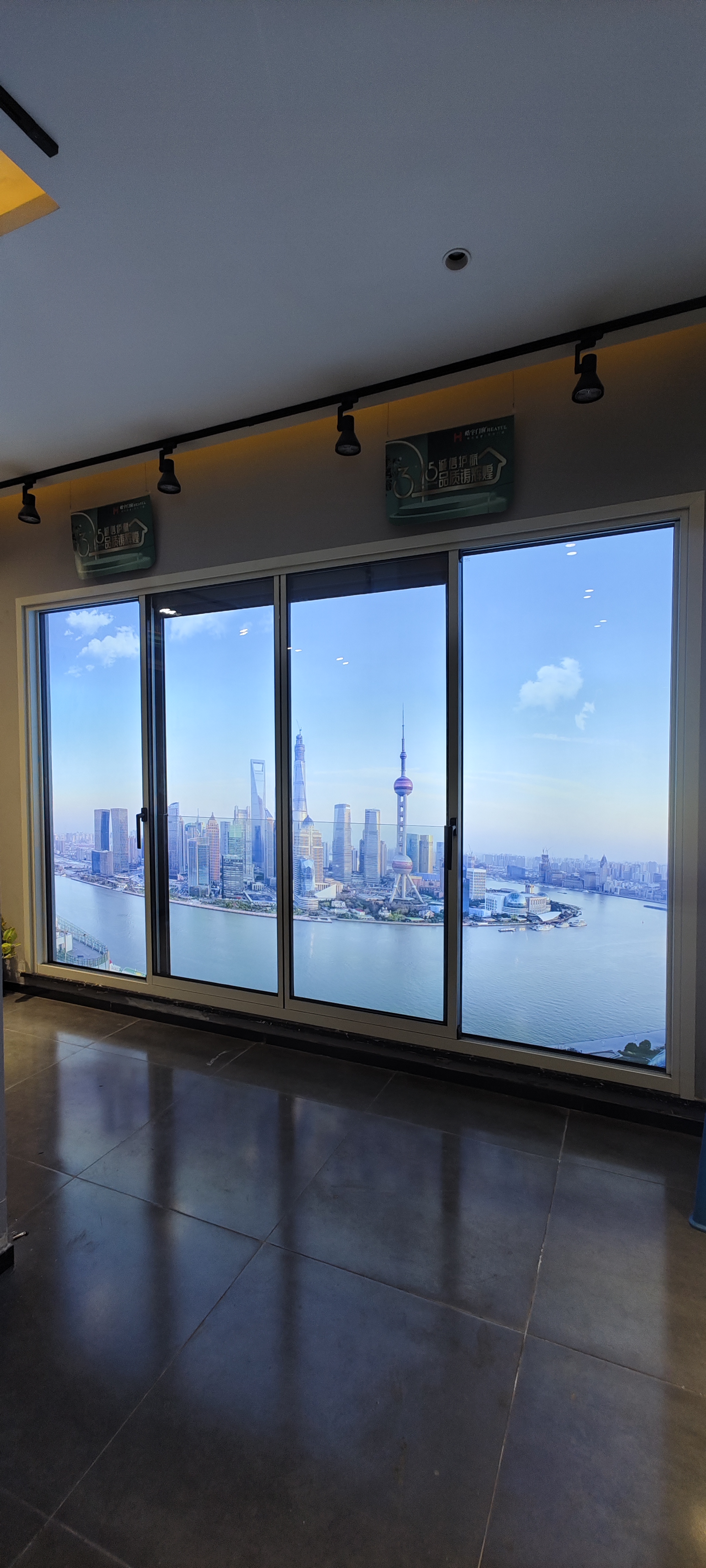

116 Series Lift-and-Slide Sliding Window

HEAVY-DUTY

中文：116 系列提升推拉窗

True lift-and-slide mechanism - the sash lifts up to glide effortlessly, then seals perfectly when closed.

The 116 Series uses genuine lift-and-slide hardware: the sash is lifted by the handle before sliding, eliminating friction and allowing very heavy panels to move with one hand.

Key Features

  • True lift-and-slide mechanism, single-handle operation
  • Lifts and slides heavy panels with minimal effort
  • BOGO airtight locking hardware - lock at any position, freely control opening area
  • Superior wind and water resistance
  • Ideal for very large and heavy panels; optional motorized roller screen available

Specifications

Profile Series116 mm lift-and-slide aluminum
Frame MaterialAluminum Alloy 6063-T5
Glass Configuration5+18A+5 double glazed tempered glass
Color OptionsStandard: Grey / White. Custom: Any RAL & Wood-grain (+fee)
HardwareChinese top brand lift-and-slide hardware / customer brand available
OriginMade in China
Get Free Quote Chat on WhatsApp

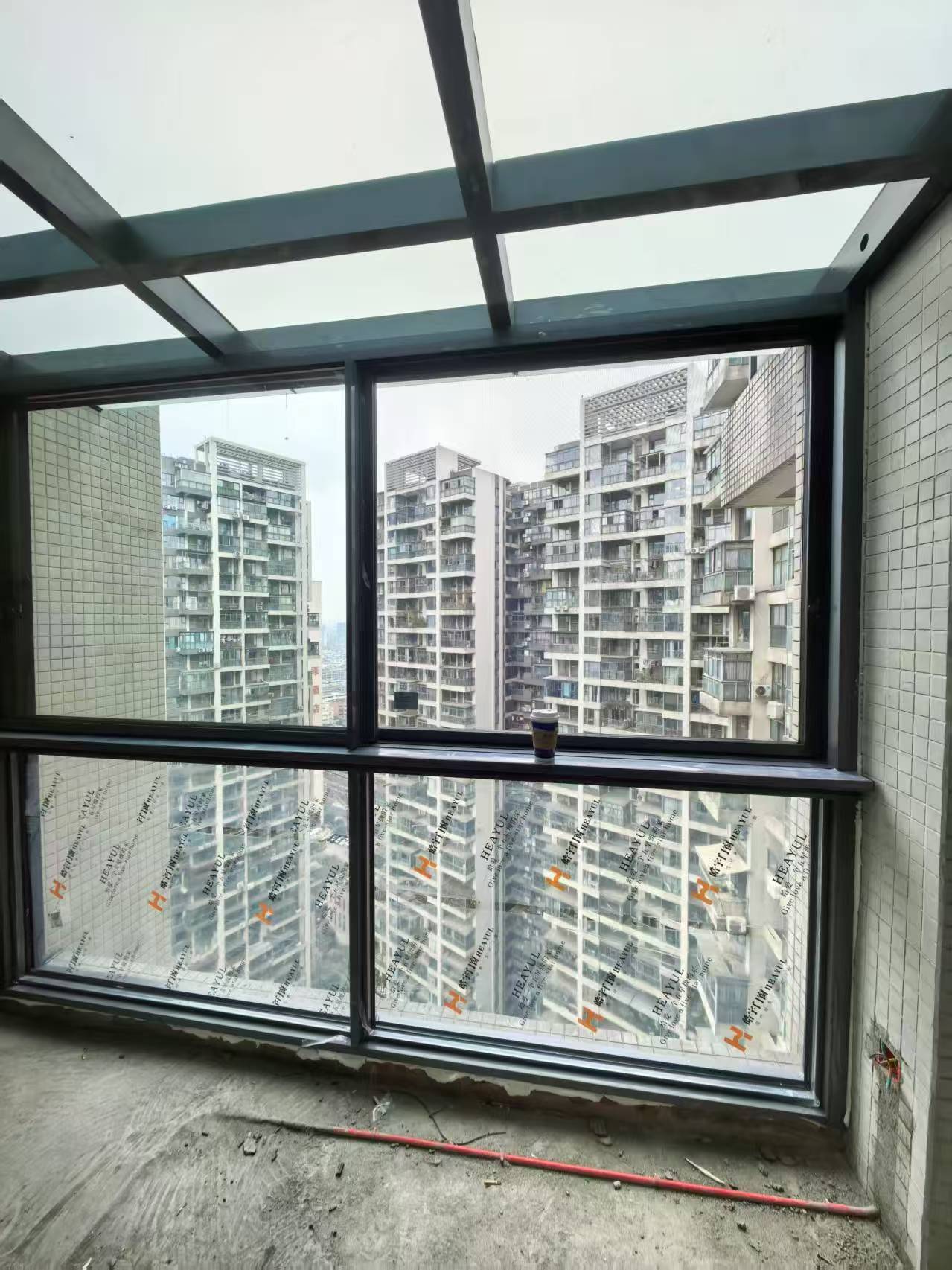

158 Series Concealed-Track Sliding Window

MODERN

中文：158 系列悬浮推拉窗（隐藏下轨）

Floating-sash sliding window with a fully concealed bottom track for seamless floors and unobstructed views.

The 158 Series features a hidden bottom track system - the rail is completely concealed under the integrated handrail cover plate - better viewing and easier cleaning

Key Features

  • Concealed bottom track - no visible rail, with built-in handrail ledge (great for coffee cups)
  • Floating sash design, smooth and silent operation
  • Heavy-duty rollers for stable movement
  • Sash embedded inside outer frame for better sealing
  • Bottom high/low track with drainage holes - fast drainage, clean look

Specifications

Profile Series158 mm concealed-track aluminum
Frame MaterialAluminum Alloy 6063-T5
Glass Configuration5+18A+5 / 6+15A+6 double glazed tempered glass
Color OptionsStandard: Grey / White. Custom: Any RAL & Wood-grain (+fee)
HardwareChinese top brand concealed roller system / customer brand available
OriginMade in China
Get Free Quote Chat on WhatsApp

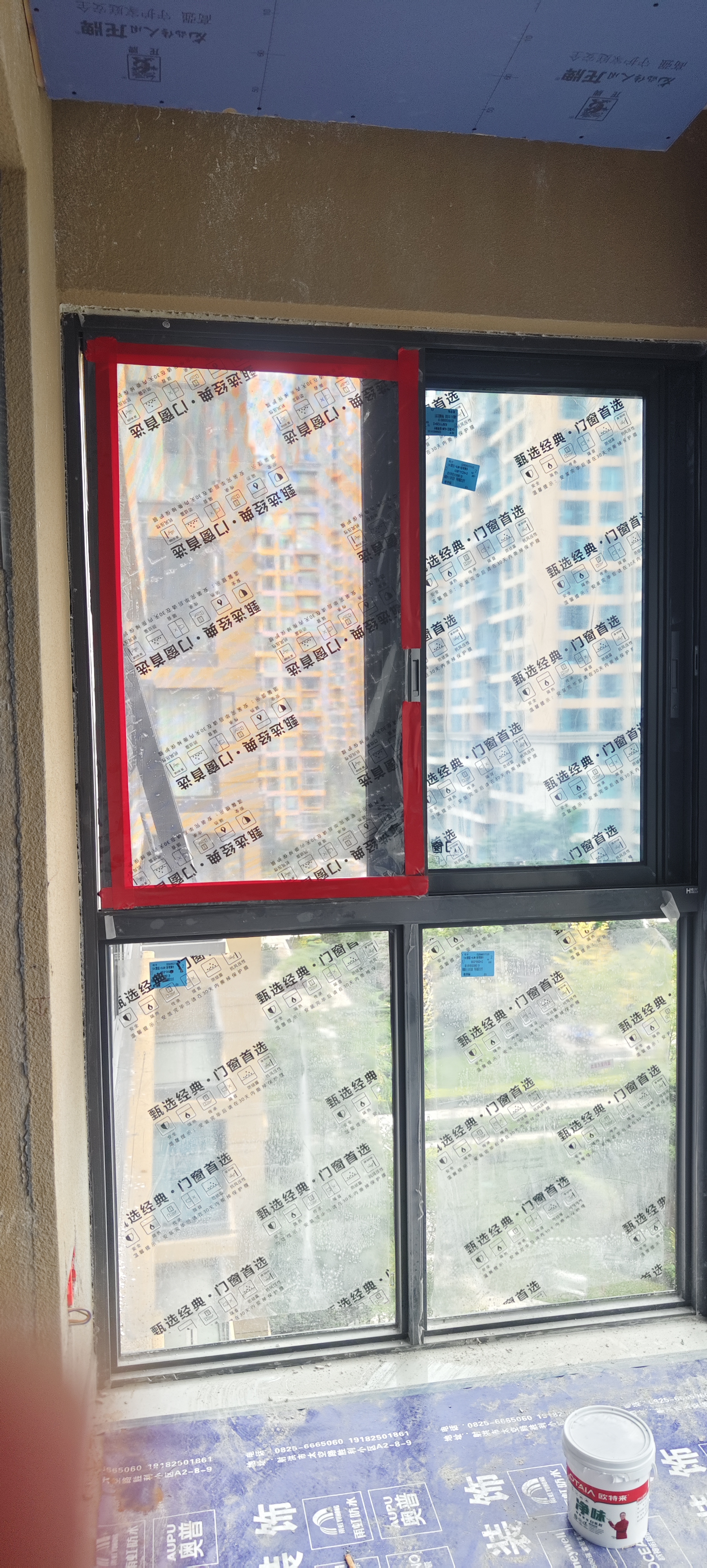

115 Series Non-Thermal-Break Sliding Window

STANDARD

中文：115 系列非断桥推拉窗

Economical non-thermal-break sliding window for warm climates and budget-conscious projects.

The 115 Series is our standard non-thermal-break sliding window, designed for regions where thermal insulation is not the primary concern.

Key Features

  • Cost-effective non-thermal-break design for warm climates
  • Standard double-glazed configuration
  • Smooth sliding operation
  • Steel-zinc alloy woven high-transparency screen mesh
  • Best price-performance ratio for budget projects

Specifications

Profile Series115 mm non-thermal-break aluminum
Frame MaterialAluminum Alloy 6063-T5
Glass Configuration5+12A+5 double glazed tempered glass
Color OptionsStandard: Grey / Coffee Brown. Custom: Any RAL & Wood-grain (+fee)
HardwareChinese standard hardware / customer-specified brand available
OriginMade in China
